Description
Scan-to-Copy/File/Share Solution

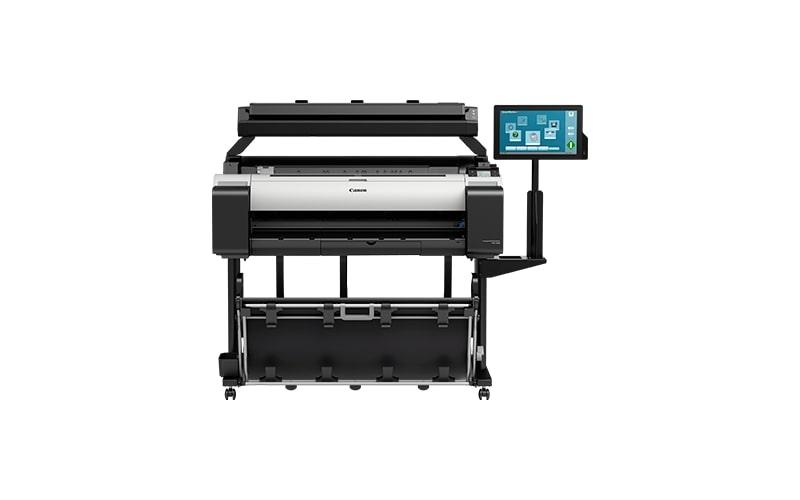

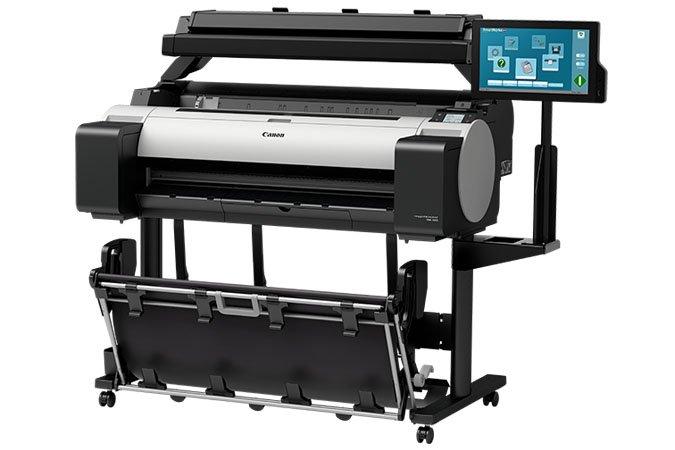

The TM-305 MFP Z36 large format printer is designed to provide fast, high-quality, large format image capture-to-output. More than just the sum of its parts, it is the versatility of the product that helps make it stand out. This multi-component system gives the user the opportunity to be more productive by being able to print and scan at the same time. The open architecture of the computer can be used to load additional programs, among other things. The AIO has an all new intuitive GUI design for simplified printer management.
The imagePROGRAF TM-305 MFP Z36 includes:
-
TM-305 36-inch Printer
-
Z36 Scanner
-
15.6″ All-In-One touchscreen computer
-
Computer Stand
-
Flat Stacking Basket
All-in-One 15.6″ Touchscreen Computer
A computer is included with the MFP Z36 system:
-
Additional programs can be added to the computer
-
Files can be moved via a USB storage device
-
Files can be shared over a network via the Ethernet card
Z36 Scanner
The light weight and compact Z36 scanner incorporates a SingleSensor Technology Assembly1, which helps provide consistent and better color accuracy with more detail in the shadows and highlights than a staggered CIS array scanner.
Features:
-
1200 dpi maximum optical resolution, 9600 dpi maximum resolution
-
Image scanning of up to 36” wide, fits documents up to 38” wide
-
Scanning speed of up to 13” per second monochrome, and up to 6” per second color
-
USB 3.0 interface, 75 Mbytes / sec transfer rate
-
Scan a document up to 1.0 mm thick
-
Face up / Front load / Rear exit
-
Straight paper path
The MFP Z36 includes an AIO controller for centralized management:
-
Files can be moved via a USB storage device
-
Files can be shared over a network via the Ethernet card
-
Statuses such as the amount of ink remaining in the printer can be obtained
-
Get information of media loaded in the printer
-
Printer maintenance can be executed
-
Resettable to factory defaults
-
Confirm with the user whether to save setting changes when quitting a function
SmartWorks MFP Software
With an all-new GUI, the new SmartWorks MFP software brings an updated look and feel that enables the operator to easily execute large-format scanning and copying from the touchscreen AIO. With a simple to use interface and “”scan-it-once”” ability, this software allows for efficient batch scanning and helps to create high quality scanned images. You can scan to PDF, TIFF and JPEG file formats. SmartWorks MFP software is now more efficient than ever before.
Features:
-
Scan-to-Multipage PDF
-
Scan lengths of up to 315” (26 ft) for PDF and JPEG files, and up to 598” (50 ft) for TIFF files
-
Ability to add custom presets with one-touch retrieval for those often-used settings
-
Image enhancements for white point adjust, black point adjust, sharpen, mirror, and invert
-
Fine detail scan feature
-
Enhanced administrator rights
-
Full integration with Canon Direct Print Plus software
LUCIA TD Pigment Ink Set
The TM-305 device features a 5-color TD pigment ink set. This ink was formulated to produce fine lines and sharp text on both inkjet and non-inkjet paper. Combine this pigment ink with water resistant media and you have a printed drawing that can withstand many outdoor conditions, especially outdoor job sites such as construction sites. Available in 130 ml or 300 ml ink tanks. 490 ml of ink ships standard with the TM-305.
Fast Printing
With faster printing of multipage files, the TM Series can print up to 144 D sized prints per hour2!
Flat Stacking Basket
The flatbed stacker/basket provides the capability to neatly stack up to twenty Arch D plain paper prints.
Direct USB Thumb Drive Printing
JPEG and PDF files can be directly printed from the TM-305. Simply load your files onto your USB drive, step right up to the printer and plug your USB drive into the port.
Wi-Fi Compatible3
Printing jobs quickly is critical on the work site and in the office. The Wi-Fi connectivity can transfer technical drawing files and help speed up your workflow- perfect for high-volume printing. No Wi-Fi router is needed, which can provide greater freedom during installation.
500GB Hard Drive
A built-in 500GB hard drive within the printer can increase productivity by relieving workload from the host computer, while providing a large capacity for print job data storage and retrieval.
Security Feature4
The TM Series large-format printers come equipped with several security features designed to help prevent leaks of confidential information:
Secure Communication
-
802.1x Authentication
-
SNMPv3
-
SSL/TLS
-
IPSec
Functionality Restrictions
-
Panel Lock by Remote UI
-
Remote UI Multilevel
-
Hide IP From Panel
-
Panel Access Control
-
Job Storage and PIN Printing
Secure Storage
-
Secure Disc Erase (Conforms to U.S. Department of Defense standard DoD5220.22-M)
The following functions can be disabled in administrator mode:
-
Direct USB Thumb Drive Printing
-
Internet Connection
-
FTP and Telnet communication protocols
-
Job Log Look-up
Quiet Operation
The TM-305 is well suited for busy office environments as it is 60% quieter than previous imagePROGRAF printers and offers less distraction in the workplace.
Operation Panel
The TM-305 features a 3″ color touchscreen operation panel making it easy to view printer information as well as perform simple operations.
Small Footprint
A good fit for small offices, the compact TM-305 has a small footprint for a 36-inch large format aqueous inkjet printer.
Print Head PF-06
The 6-channel PF-06 Print Head is engineered to work with the printer’s high-speed carriage and high-frequency ink ejection to help facilitate fast printing. This printer boasts Canon’s print-head technology that lays down ink with outstanding speed and accuracy. The PF-06 print head incorporates a nozzle orifice shape to help minimize mist spray, producing clean lines and text. The high-precision, high-density print head, with a total of 15,360 nozzles, lays down 5 picoliter-size ink droplets that help produce sharp detail and excellent image quality. The result is consistently accurate 2400 x 1200 dpi output (max.) with fine lines that are accurate to ±0.10% and as thin as 0.02mm.
Sub Ink Tank System
The Sub-Ink Tank System allows virtually all of the available ink in a tank to be used before having to replace it, helping to eliminate wasted ink. The empty tanks can also be replaced on-the-fly without stopping the printer. This is extremely useful during your long print jobs.
L-COA Processor
Canon’s advanced print head technology achieves speeds up to 144 A1 sized prints per hour on uncoated media. Powering these incredible print speeds is Canon’s L-COA processor, which controls the optimal ink layout helping to ensure high resolution output.
DISCLAIMERS
Recycled paper and chlorine-free paper can be used with this product.
-
SingleSensor Technology Assembly means that multiple sensors are contained in one assembly device.
-
Plain Paper, Fast (Q5) mode.
-
Wireless printing requires a working network with wireless 802.11b/g or 802.11n capability. Wireless performance may vary based on terrain and distance between the printer and wireless network clients.
-
Canon products offer certain security features, yet many variables can impact the security of your devices and data. Canon does not warrant that use of its features will prevent security issues. Nothing herein should be construed as legal or regulatory advice concerning applicable laws; customers must have their own qualified counsel determine the feasibility of a solution as it relates to regulatory and statutory compliance. Some security features may impact functionality/performance; you may want to test these settings in your environment.
-
For imagePROGRAF Printer Driver. For printing from PostScript applications such as Adobe Illustrator or QuarkXpress, please use a PostScript compatible RIP package.
