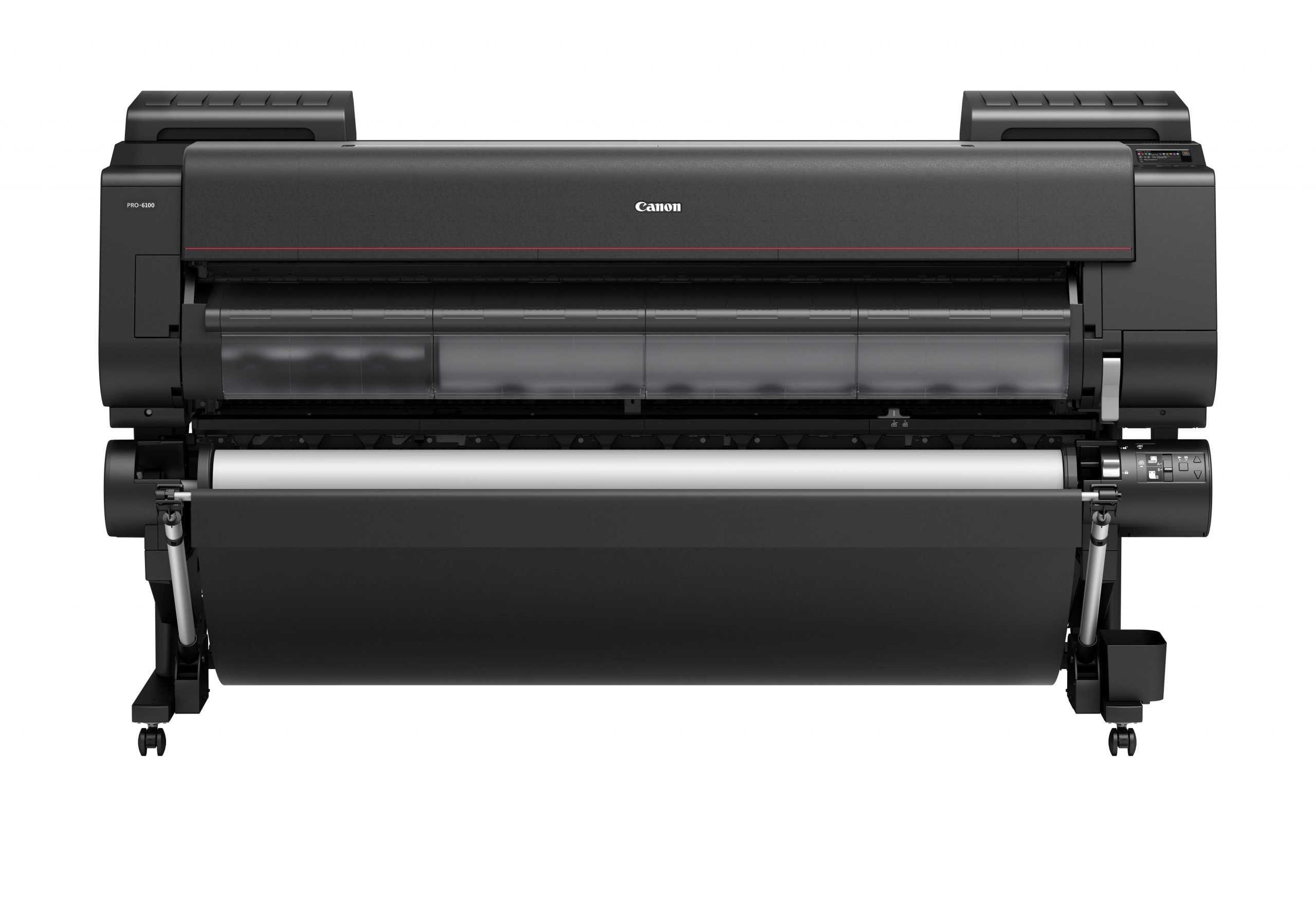

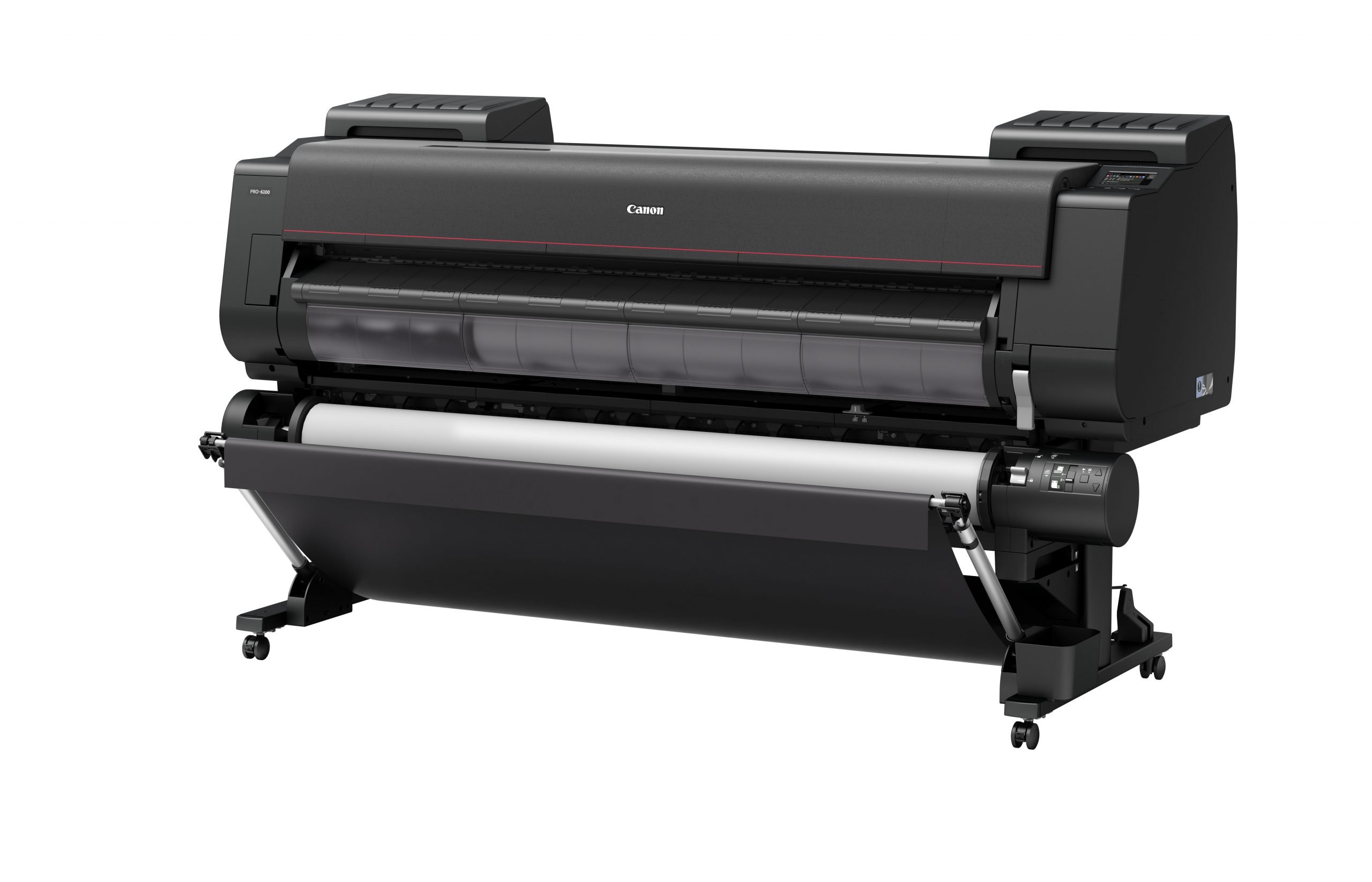

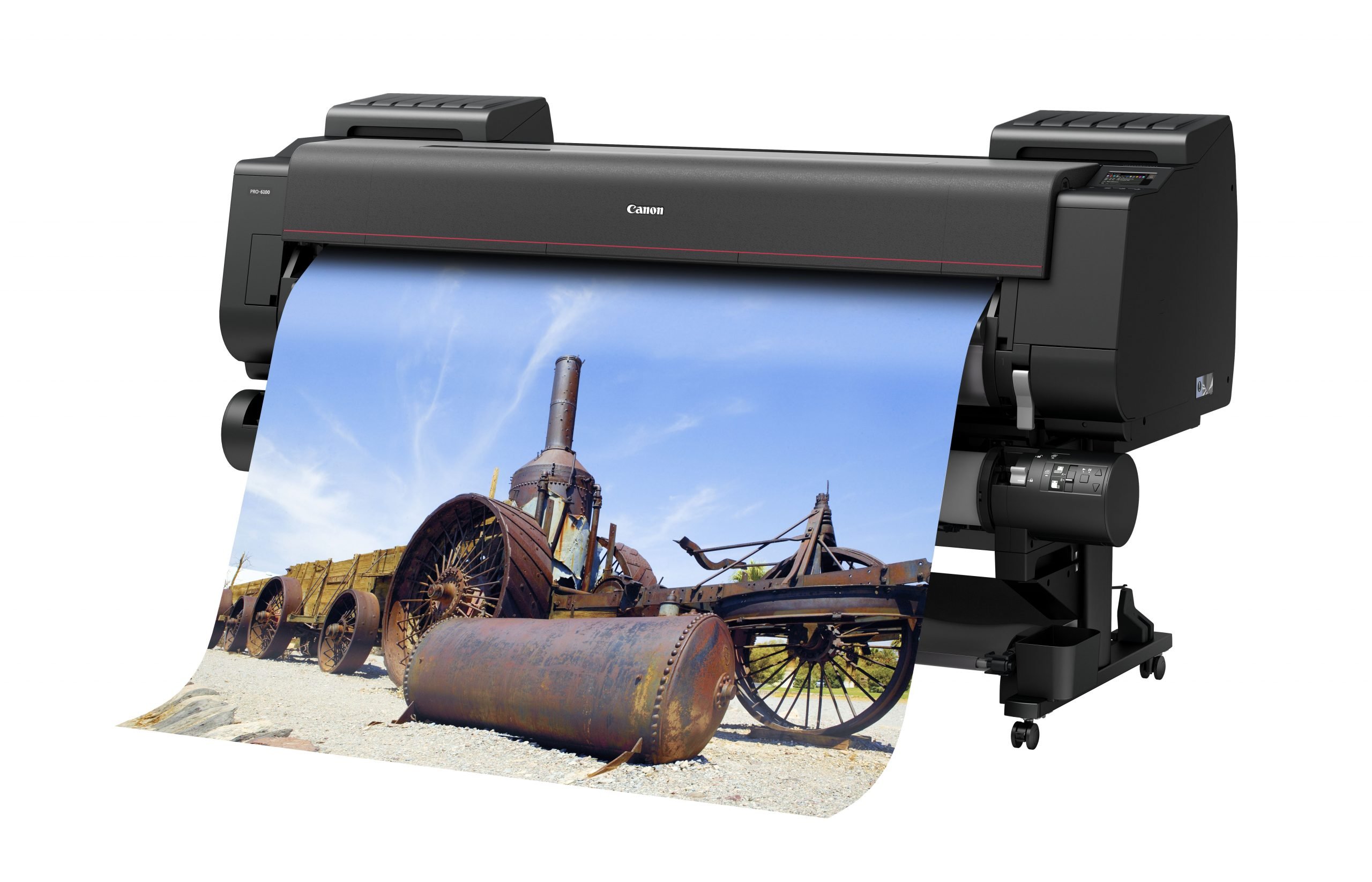

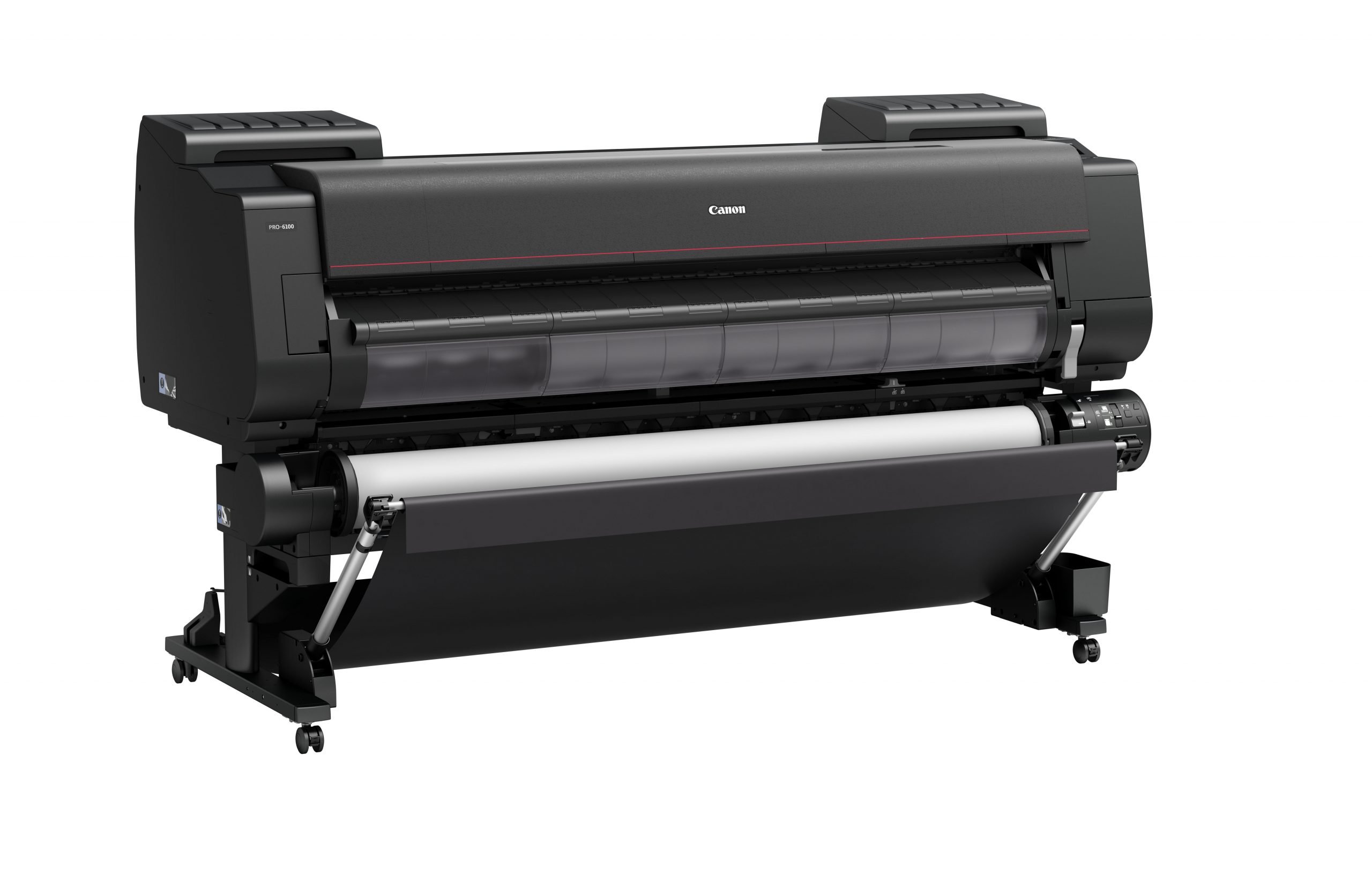

PRO-6100 Printer (60″)

$11,541.00

The 60-inch imagePROGRAF PRO-6100 printer is designed to exceed expectations for image quality and color consistency in a large format printer. The use of a 1.28-inch wide 12-channel integrated compact print head, LUCIA PRO ink set plus Chroma Optimizer, a high-precision mechanical platform and the L-COA PRO high-speed image processing engine achieves a balance between exceptional print quality and speed.

The imagePROGRAF PRO-6100 has been designed to include intelligent technology for advanced media handling, increased security features, borderless printing and improved operational design.

Bring your prints to life with the imagePROGRAF PRO Series.

SKU: 3871C005AA

Description

Intelligent Media Loading

For the first time ever, an imagePROGRAF printer can load and recognize paper without the need for human intervention. Simply set the roll holder in the printer and let the media automatically feed into the print. The built-in multi-sensor measures the surface reflection and the media thickness to determine media type, without the need to manually enter it.

Remaining Media Estimation

Accurately measure the remaining media on a roll, without the need to print a bar code – saving both ink and media!

New Operation Panel

The large 4.3″ LCD operation panel utilizes smart phone touch screen technology for easy operation. The top three most-used commands: Load, Feed and Cut, now have their own buttons below the operation panel for ease of use.

Enhanced Security

Developed with advanced security features, including support of secure PIN printing to protect data and the ability to disable printing, increasing administrative control of end-user printing.

LUCIA PRO Ink Set

The LUCIA PRO ink set adopts 11-color pigment inks and a Chroma Optimizer. Designed specifically to meet the demands of even the most critical photographer, the LUCIA PRO ink formulation includes microencapsulated colorants that enable smooth gradients, an expanded color gamut, and deeper color expression. This system helps you achieve stunning color reproduction, image clarity, and enhanced darker areas. A first for the Canon large format printers is the addition of a Chroma Optimizer. Used when printing on glossy and semi-glossy paper, this acts as a clear coat, improving color performance and gloss characteristics enriching the dark areas of a print.
This ink set helps:
    • Enhance gloss uniformity
    • Improve scratch resistance
    • Enhance dark area reproduction
    • Reduce graininess

No Switching of Black Inks

The PRO Series is designed to work seamlessly when changing media types. Matte black and Photo black inks have their own dedicated nozzles, so no manual switching between ink tanks is necessary. You can print on fine art paper then glossy paper with no worries, no changes, and no waste.

PF-10 Print Head

The PF-10, a 1.28”-wide print head with 18,432 nozzles equipped with anti-clogging FINE technology, generates fast print speeds while reducing the possibility of clogging. Ink ejection conditions are precisely checked by 27 sensors, and if a clog is detected, another nozzle will provide back-up. This print head is wider than previous imagePROGRAF print heads requiring models to only have one instead of two. Having only one print head means a more compact printer that achieves faster print speeds while maintaining high print quality.

L-COA PRO High-Speed Image Processing Engine

The imagePROGRAF printers are powered by the L-COA PRO high-speed image processing engine. With three processing chips, this high-precision control engine performs the processing of massive image data, and controls the optimal ink layout that produces high resolution prints.

Color Calibration

The color calibration function is designed to produce consistent color reproduction. This new printer includes an upgraded, built-in color densitometer that offers precise calibration and color matching. Using a three-color LED and condenser lens the sensor enables accurate recalibration of the device, allowing you to maintain a low average printer-to-printer color difference. The color calibration is finished quickly after a few simple steps on the printer’s operation panel. A single color calibration performed with one type of media is used to make adjustments on the other Canon supported media.
Device Management Console

The Device Management Console software, ideal for fleet management, lets you perform color calibrations remotely. This software lets you monitor the printer status of up to 50 units from any location in the world, be notified via email when an error has occurred, or check the amount of ink left in the printers without ever having to leave the comfort of your desk.

High Precision Mechanical Platform

The engineered unibody structure provides a strong platform for stable print head scanning, resulting in precise ink droplet placement. The perfect combination of speed and high-quality printing is achieved with this design.

Multifunction Roll System

The Multifunction Roll System, standard with the PRO-6100, utilizes Canon’s new intelligent media handling. This system a versatile media handling solution system that enables either a second roll of media to be loaded on the printer, or the unit can be configured as a bi-directional media Take-up unit. Dual –Roll Feeding: The dual-roll feeding mechanism enables users to load a second roll of a different media type and size so that users can simultaneously switch from printing on matte to gloss paper without pausing their work to reload. Additionally, the second roll can be used to support high-volume printing be enabling two rolls of the same media to be fed to the printer. Bi-Directional Rewinding: The Multifunction Roll System may also be configured by the operator as a take-up unit to rewind longer printouts. The user can choose to rewind media with the printed surface on the outside or the inside of the roll, thereby supporting “bi-directional rewinding”.

Wi-Fi® Connection2

Stay Connected. Wi-Fi® connectivity is standard with the PRO Series printers.

Print From USB Thumb Drive

PDF and JPEG files can be directly printed on the imagePROGRAF PRO-6100 from a USB thumb drive. Simply input the thumb drive into the USB port on the printer, preview the image on the operation panel, and print! Fast and easy printing without the use of a computer.

High Capacity Ink Tanks

Available in 160ml, 330ml, and 700ml ink tanks, you have the flexibility to purchase ink based on your printing needs. 700ml photo black ink tanks can be purchased for those often printing nightscapes and 160ml magenta ink tanks for the occasional sunset image, giving you the power to purchase ink based on the color frequency at which you print.

Sub-Ink Tank System

The Sub-Ink Tank System allows all of the available ink in a tank to be used before having to replace it, helping eliminate any wasted ink. The empty tanks can also be replaced on-the-fly without stopping the printer. This is extremely useful during your long print jobs.

Multipositional Basket

The imagePROGRAF PRO-6100 features a multipositional basket that can be freely adjusted to enable various output positions and options: Catch Basket Flatbed Stacking Slope (can be used to display a print)

500GB Hard Drive

A built-in 500 GB hard drive within the printer increases productivity by relieving workload from the host Mac or PC, while providing a large capacity for print job data storage and retrieval. This 500 GB hard drive enables job data to be stored in protected mailboxes for easy access via web browser or at the printer for job re-printing. The embedded hard disk is ideal for medium to large workgroups to share a printer efficiently with multiple users, offering sample job storage space.



DISCLAIMERS
Recycled paper and chlorine-free paper can be used with this product.

Canon and imagePROGRAF are registered trademarks and LUCIA PRO logo are trademarks of Canon Inc. in the United States and may also be registered trademarks or trademarks in other countries. All other referenced product names and marks are trademarks of their respective owners. Prices, specifications, and availability are subject to change without notice. Actual prices are set by individual dealers and may vary. All printout images and effects are simulated.

    1. Professional Print & Layout software is compatible with Adobe Photoshop CC 2015 – CC 2019, Adobe Photoshop Lightroom V6.X, CC2016, Classic CC, Photoshop Elements 15, 2018, 2019 and Canon Digital Photo Professional 4.92 or later.
    1. Wireless printing requires a working network with wireless 802.11b/g or 802.11n capability. Wireless performance may vary based on terrain and distance between the printer and wireless network clients.
    1. For imagePROGRAF Printer Driver. For printing from PostScript applications such as Adobe Illustrator or QuarkXpress, please use a PostScript compatible RIP package. For a list of Canon recommended RIP packages, please consult with Canon Alliance and Industry Market list of RIP vendors.
    1. Your server must be compatible with a webDAV enabled cloud account, including but not limited to, Google, Carbonite or Rackspace, to take advantage of the cloud functionality. Storage capacity and any pricing thereof is based on the third-party cloud providers current offering, at its sole discretion. Your cloud account is subject to the third-party cloud provider’s terms and conditions. Neither Canon Inc. nor Canon U.S.A., Inc. represents or warrants any third party product, service or feature referenced hereunder.
*The starter ink tanks initially packaged with the printer are not the same capacity as the replacement ink tanks specified here.
**The maximum printable length varies, depending on application, OS, and RIP used.
† Prices and specifications subject to change without notice. Actual prices are determined by individual dealers and may vary.
  • imagePROGRAF PRO-6100
  • Multifunction Roll Unit with Tools (Separate Box)
  • Stand
  • Tools and Screws
  • US AC Power Cable
  • Print Head PF-10
  • 330ml Starter Ink Tanks (MBK/BK/C/M/Y/PC/PM/GY/PGY/R/B/CO)
  • 2″ Roll Holder with 3″ Core Adaptors
  • Quick Set-up Guide
  • Safety and Environmental Sheet
  • Setup Guide
  • Printer Stand Setup Guide
  • Print Head Alignment Sheet
  • USB Connection Sheet
  • Software Discs (Windows Drivers)
  • Sample media (5 sheets of Heavy Weight Coated HG paper A2 size)
  • Call Center Notice Card (USA)
  • User Registration Card
  • Printer and Print Head Warranty Cards (USA and Canada)
  • Canon USA Media Compatibility Sheet
  • iWR Service Terms leaflet
NameTypePrice
Installation - PRO-2100, PRO-4100, PRO-4100S, PRO-6100, PRO-6100SInstallation$694ADD TO CART
NameTypePrice
PosterArtistSoftware$425ADD TO CART
Colorbyte IMAGEPRINT R.E.D. SoftwareSoftware$599ADD TO CART
NameTypePrice
PRO-6100 1 Year eCarePAKService Contract$1076ADD TO CART
PRO-6100 2 Year eCarePAKService Contract$2044ADD TO CART
NameTypePrice
Roll Holder Set RH2-66Accessories$305ADD TO CART
PRO-6100, PRO-6100S Dust CoverAccessories$195ADD TO CART
NameTypePrice
PF-10 Canon Print HeadSupplies$726ADD TO CART
MC-30 Canon Maintenance CartridgeSupplies$115ADD TO CART
Cutter Blade CT-07Supplies$115ADD TO CART
PFI-1100MBK - Pigment Ink Tank 160mlSupplies$107ADD TO CART
PFI-1100PBK - Pigment Ink Tank 160mlSupplies$107ADD TO CART
PFI-1100C - Pigment Ink Tank 160mlSupplies$107ADD TO CART
PFI-1100M - Pigment Ink Tank 160mlSupplies$107ADD TO CART
PFI-1100Y - Pigment Ink Tank 160mlSupplies$107ADD TO CART
PFI-1100PC - Pigment Ink Tank 160mlSupplies$107ADD TO CART
PFI-1100PM - Pigment Ink Tank 160mlSupplies$107ADD TO CART
PFI-1100GY - Pigment Ink Tank 160mlSupplies$107ADD TO CART
PFI-1100PGY - Pigment Ink Tank 160mlSupplies$107ADD TO CART
PFI-1100R - Pigment Ink Tank 160mlSupplies$107ADD TO CART
PFI-1100B - Pigment Ink Tank 160mlSupplies$107ADD TO CART
PFI-1100CO - Pigment Ink Tank 160mlSupplies$103ADD TO CART
PFI-1300MBK - Pigment Ink Tank 330mlSupplies$187ADD TO CART
PFI-1300PBK - Pigment Ink Tank 330mlSupplies$187ADD TO CART
PFI-1300C - Pigment Ink Tank 330mlSupplies$187ADD TO CART
PFI-1300M - Pigment Ink Tank 330mlSupplies$187ADD TO CART
PFI-1300Y - Pigment Ink Tank 330mlSupplies$187ADD TO CART
PFI-1300PC - Pigment Ink Tank 330mlSupplies$187ADD TO CART
PFI-1300PM - Pigment Ink Tank 330mlSupplies$187ADD TO CART
PFI-1300GY - Pigment Ink Tank 330mlSupplies$187ADD TO CART
PFI-1300PGY - Pigment Ink Tank 330mlSupplies$187ADD TO CART
PFI-1300R - Pigment Ink Tank 330mlSupplies$187ADD TO CART
PFI-1300B - Pigment Ink Tank 330mlSupplies$187ADD TO CART
PFI-1300CO - Pigment Ink Tank 330mlSupplies$179ADD TO CART
PFI-1700MBK - Pigment Ink Tank 700mlSupplies$317ADD TO CART
PFI-1700C - Pigment Ink Tank 700mlSupplies$317ADD TO CART
PFI-1700M - Pigment Ink Tank 700mlSupplies$317ADD TO CART
PFI-1700Y - Pigment Ink Tank 700mlSupplies$317ADD TO CART
PFI-1700PC - Pigment Ink Tank 700mlSupplies$317ADD TO CART
PFI-1700PM - Pigment Ink Tank 700mlSupplies$317ADD TO CART
PFI-1700GY - Pigment Ink Tank 700mlSupplies$317ADD TO CART
PFI-1700PGY - Pigment Ink Tank 700mlSupplies$317ADD TO CART
PFI-1700R - Pigment Ink Tank 700mlSupplies$317ADD TO CART
PFI-1700B - Pigment Ink Tank 700mlSupplies$317ADD TO CART
PFI-1700CO - Pigment Ink Tank 700mlSupplies$305ADD TO CART

Additional information

Weight553 lbs
Dimensions88 × 59 × 36 in
