TX-3100MFP Printer (36″, w/ Z36 & stacker)

From: $11,525.00

FREE roll unit ($1,157 value) with a purchase of an imagePROGRAF TX-3100. Valid March 1 ,2024 thru May 31, 2024.

The new 36-inch TX-3100 large-format printer has been upgraded with faster printing speeds, an enhanced automatic roll loading function, and free-size borderless printing to improve productivity and efficiency. Preprocessing technology between pages and a faster cutter speed help to achieve printing speeds up to 3.2 ppm (plain paper, drawings) during continuous printing. This MFP includes a production CAD printer, Z36 scanner and intuitive system controller making it a powerful addition to Canon’s portfolio of large format printers perfect for scanning maps, drawings and renderings.

Questions? Contact Us today!

SKU: 5515C003AA

Description

Scan-to-Copy/File/Share Solution

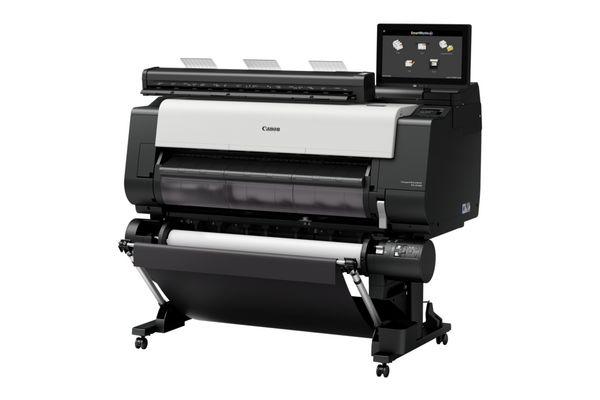

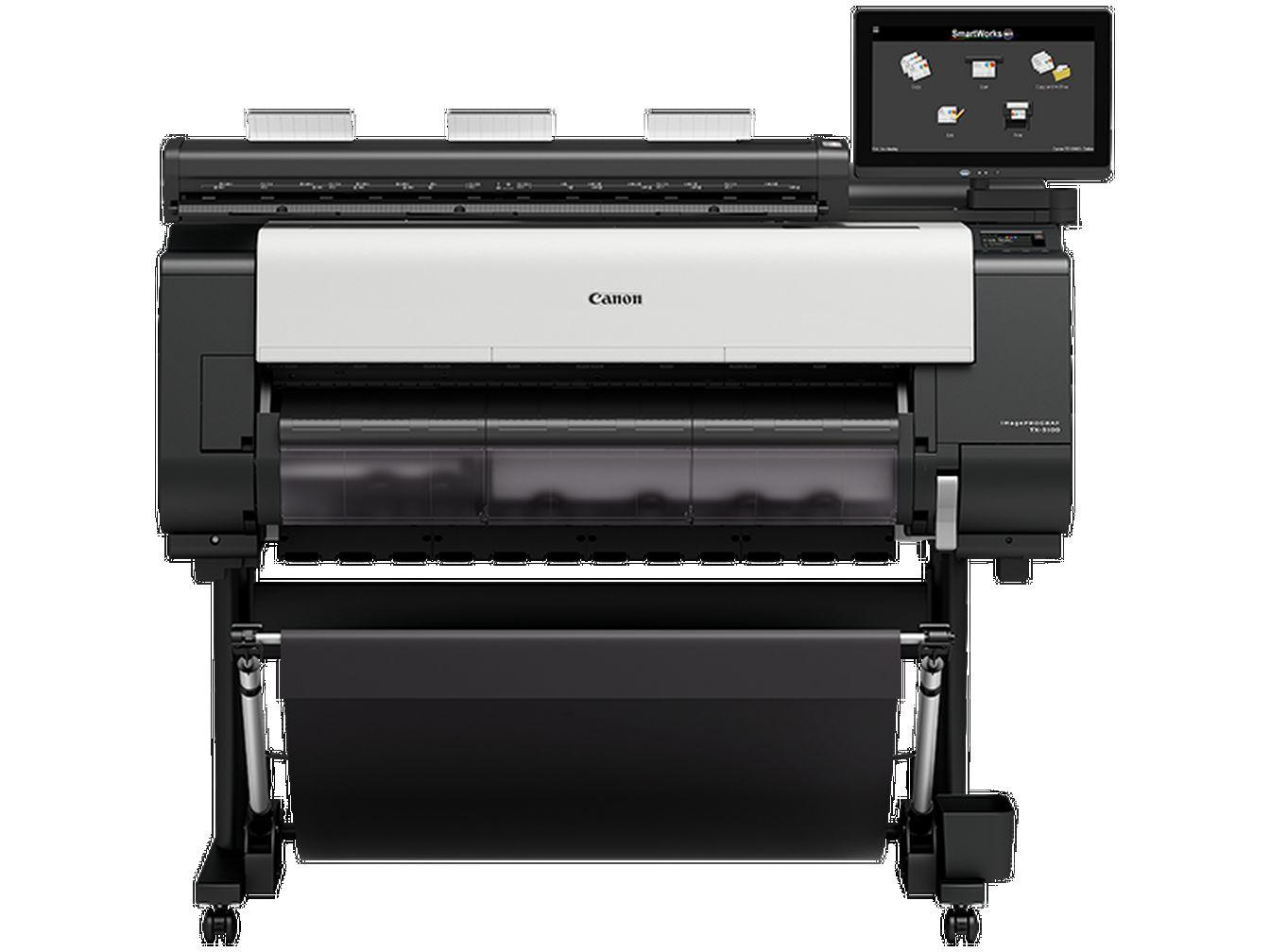

The TX-3100 MFP Z36 large format printer is designed to provide fast, high-quality, large format image capture-to-output. More than just the sum of its parts, it is the versatility of the product that helps make it stand out. This multi-component system gives the user the opportunity to be more productive by being able to print and scan at the same time. The open architecture of the computer can be used to load additional programs, among other things. The AIO has an all new intuitive GUI design for simplified printer management.
The imagePROGRAF TX-3100 MFP Z36 includes:
  • TX-3100 36-inch Printer
  • Z36 Scanner
  • 15.6″ All-In-One touchscreen computer
  • Computer Stand
  • TX Stacker or Catch Basket

SmartWorks MFP Software

With an all-new GUI, the new SmartWorks MFP software brings an updated look and feel that enables the operator to easily execute large-format scanning and copying from the touchscreen AIO. With a simple to use interface and “scan-it-once” ability, this software allows for efficient batch scanning and helps to create high quality scanned images. You can scan to PDF, TIFF and JPEG file formats. SmartWorks MFP software is now more efficient than ever before.
Features:
  • Scan-to-Multipage PDF
  • Scan lengths of up to 315” (26 ft) for PDF and JPEG files, and up to 598” (50 ft) for TIFF files
  • Ability to add custom presets with one-touch retrieval for those often-used settings
  • Image enhancements for white point adjust, black point adjust, sharpen, mirror, and invert
  • Fine detail scan feature
  • Enhanced administrator rights
  • Full integration with Canon Direct Print Plus software

Z36 Scanner

The light weight and compact Z36 scanner incorporates a SingleSensor Technology Assembly1, which helps provide consistent and better color accuracy with more detail in the shadows and highlights than a staggered CIS array scanner.
Features:
  • 1200 dpi maximum optical resolution, 9600 dpi maximum resolution
  • Image scanning of up to 36” wide, fits documents up to 38” wide
  • Scanning speed of up to 13” per second monochrome, and up to 6” per second color
  • USB 3.0 interface, 75 Mbytes / sec transfer rate
  • Scan a document up to 1.0 mm thick
  • Face up / Front load / Rear exit
  • Straight paper path
The MFP Z36 includes an AIO controller for centralized management:
  • Files can be moved via a USB storage device
  • Files can be shared over a network via the Ethernet card
  • Statuses such as the amount of ink remaining in the printer can be obtained
  • Get information of media loaded in the printer
  • Printer maintenance can be executed
  • Resettable to factory defaults
  • Confirm with the user whether to save setting changes when quitting a function

All-in-One 15.6″ Touchscreen Computer

A computer is included with the MFP Z36 system:
  • Files can be moved via a USB storage device
  • Files can be shared over a network via the Ethernet card

Automatic Roll Loading

The Intelligent Media Handling feature allows the user to simply place a roll in the opened drawer and slide in the media from the front of the printer with ease. The printer automatically detects media type, width, and length, for simplified user handling.

Media Output Options

TX Stacker
Available for purchase with the TX Series, this stacker can stack up to 100 sheets of documents of mixed sizes, including ARCH C, ARCH D, or ARCH E/E1 sizes and is built for high productivity and increased flexibility. The variety of configurations that the TX Stacker can be positioned into helps to make prints easily accessible to pick up for on-the-go printing. When not in use, the TX Stacker can be folded up to conserve space.
Multi-positional Catch Basket
Available for purchase with the TX Series, the multi-positional basket can be freely adjusted to enable various output positions and options:
  • Catch Basket
  • Flatbed Stacking
  • Slope (can be used to display a print)

Optional 2nd Roll Unit

The optional Multifunction Roll System is a versatile media handling solution system that enables either a second roll of media to be loaded on the printer, or can be configured as a bi-directional media take-up unit. The optional second roll unit allows for the instant switching between different media types or the use of two rolls of the same paper for up to 190 D-sized prints per hour. As a take-up unit the operator can choose to use this option to rewind longer printouts, with the print surface on the outside or on the inside of the roll.

Security Feature2

The TX-3100 supports the security features often required for large-scale business segments, such as finance institutions or government and military. Print with ease knowing your files are more protected with Canon’s advanced security technology:
Secure Communication
  • 802.1x Authentication
  • SNMPv3
  • SSL/TLS
  • IPsec
Functionality Restrictions
  • Panel Lock by Remote UI
  • Role-based access control
  • Front-panel access lock
  • Remote UI Multilevel
  • Hide IP from Panel
  • Panel Access Control
  • Job Storage and PIN Printing
Secure Storage
  • Self Encrypting Hard Disk
  • Secure Disc Erase (Conforms to U.S. Department of Defense standard DoD5220.22-M)
  • Secure File Erase*
The following functions can be disabled in administrator mode:
  • Direct USB Thumb Drive Printing
  • Internet Connection
  • FTP and Telnet communication protocols
  • Job Log Look-up

LUCIA TD Pigment Ink Set

The TX-3100 features the TD pigment ink set. This ink was formulated to produce fine lines and sharp text on both inkjet and non-inkjet paper. Combine this pigment ink with water resistant media and you have a printed drawing that can withstand many outdoor conditions, especially outdoor job sites such as construction sites. Available in 160 ml, 330 ml, and 700 ml ink tanks3, you have the ability to purchase a combination of ink sizes based on your printing volume. 970 ml of ink ships standard with the TX-3100.

Sub Ink Tank System

The Sub-Ink Tank System allows all of the available ink in a tank to be used before having to replace it, helping eliminate any wasted ink. The empty tanks can also be replaced on-the-fly without stopping the printer. This is extremely useful during your long print jobs.

Print Head PF-06

The 6-channel PF-06 Print Head is engineered to work with the printers’ high-speed carriage and high-frequency ink ejection to enable fast printing. This printer boasts Canon’s print-head technology that lays down ink with exceptional speed and accuracy. The PF-06 print head incorporates a nozzle orifice shape to help minimize mist spray, producing clean lines and text. The high-precision, high-density print head, with a total of 15,360 nozzles, lays down 5 picoliter-size ink droplets that produce sharp detail and excellent image quality. The result is consistently accurate 2400 x 1200 dpi output with fine lines that are accurate to ±0.10% and as thin as 0.02mm.

Borderless Printing

The TX-3100 supports borderless printing on all roll widths and custom widths as well as three sized borderless printing for a reduction in paper trimming.

Operation Panel

A large size 4.3″ LCD touch screen has been integrated into the TX-3100. The large and more vibrant screen displays information such as remaining ink levels. The operation guide can easily be displayed from this screen and be scanned with a smartphone to access a library of information on how to replace consumables.

L-COA Processor

Canon’s advanced print head technology achieves speeds up to 190 D-sized prints per hour4 on uncoated media. Powering these incredible print speeds is Canon’s L-COA processor, which controls the optimal ink layout helping to ensure high resolution output.

Direct USB Thumb Drive Printing

Direct USB thumb drive printing supports JPEG and PDF file formats. Simply load your files onto your USB drive, step right up to the printer and plug your USB drive into the port. The TX-3100 supports selected page preview. When printing a multi-page PDF file from a USB, the user can select a certain page on the operation panel and display it in a preview window.

Wi-Fi Compatible5

Printing jobs quickly is critical on the work site and in the office. Wi-Fi connectivity can transfer technical drawing files and help speed up your workflow – perfect for high-volume printing. No Wi-Fi router is needed, which can provide greater freedom during installation. Wi-Fi connectivity is standard for the imagePROGRAF TX Series printers.

500GB Hard Drive

A built-in 500GB hard drive within the printer increases productivity by relieving workload from the host PC, while providing a large capacity for print job data storage, and retrieval.



DISCLAIMERS
Recycled paper and chlorine-free paper can be used with this product.

The imagePROGRAF TX MFP Z36 system contains multiple components, some of which are manufactured by third parties. To the extent that such third-party offerings come with limited warranties, those such limited warranties are hereby passed to the purchaser, and Canon shall have no obligation.

All speed measured on Plain Paper in Fast Q5 mode.

  1. SingleSensor Technology Assembly means that multiple sensors are contained in one assembly device.
  2. Canon products offer certain security features, yet many variables can impact the security of your devices and data. Canon does not warrant that use of its features will prevent security issues. Nothing herein should be construed as legal or regulatory advice concerning applicable laws; customers must have their own qualified counsel determine the feasibility of a solution as it relates to regulatory and statutory compliance. Some security features may impact functionality/performance; you may want to test these settings in your environment.
  3. The 700ml ink tank is only available for service authorized partners.
  4. Plain Paper, Fast (Q5) mode.
  5. Wireless printing requires a working network with wireless 802.11b/g or 802.11n capability. Wireless performance may vary based on terrain and distance between the printer and wireless network clients.
  6. For imagePROGRAF Printer Driver. For printing from PostScript applications such as Adobe Illustrator or QuarkXpress, please use a PostScript compatible RIP package.
† Prices and specifications subject to change without notice. Actual prices are determined by individual dealers and may vary.
  • imagePROGRAF TX-3100
  • TX Stacker
  • Printer Stand
  • 2″/3″ Core Media Spool (Adaptors Included)
  • US AC Power Cable
  • Tools and Screws
  • Print Head PF-06
  • Maintenance Cartridge (Installed)
  • 5 Ink Tanks (330 ml: MBK, 160 ml: C/M/Y/BK)
  • Ethernet Card (built-in)
  • USB 2.0 High-speed Interface
  • USB Connection Sheet
  • iWR Service Terms Leaflet
  • User Manual
  • Quick Setup Guide
  • User Software CD for Windows (Printer Driver Utilities)
  • PosterArtist Lite CD
  • User Registration Card
  • Warranty Statement

Z36 Scanner Box

  • Z36 Scanner with power cord
  • USB 3.0 Cable
  • 15.6″ System Controller
  • 3:1 Trident Power Cord
  • Power Supply
  • Mount for system controller
  • (2) Paper Edge Guides
  • (3) Document Return Guides
  • Calibration Target
  • Assembly and Start-up Guide
NameTypePrice
Installation - TX-3100 MFP, TX-4100 MFPInstallation$1500ADD TO CART
Installation - Multifunction Roll UnitInstallation$431ADD TO CART
Lift Assistance for InstallationInstallation$323ADD TO CART
NameTypePrice
PosterArtistSoftware$425ADD TO CART
Colorbyte IMAGEPRINT R.E.D. SoftwareSoftware$599ADD TO CART
NameTypePrice
TX-3100 MFP 2 Year + 9 Month eCarePAK (includes install)Service Contract$4302ADD TO CART
TX-3100 MFP 2 Year + 9 Month eCarePAK (no installation)Service Contract$3232ADD TO CART
NameTypePrice
SS-31 StackerAccessories$735ADD TO CART
Roll Holder Set RH2-34Accessories$175ADD TO CART
BU-04 Multi-Positional Catch BasketAccessories$622ADD TO CART
Roll Unit RU-32Accessories$807ADD TO CART
Z36 Keyboard TrayAccessories$300ADD TO CART
Z36 Calibration TargetAccessories$63ADD TO CART
Z36 Scanner GlassAccessories$356ADD TO CART
Z36 Hold-up PlateAccessories$52ADD TO CART
Z36 Document Return Guides (Pack of 3)Accessories$112ADD TO CART
NameTypePrice
PF-06 Canon Print HeadSupplies$484ADD TO CART
MC-30 Canon Maintenance CartridgeSupplies$115ADD TO CART
Cutter Blade CT-07Supplies$115ADD TO CART
PFI-110Y- Pigment Ink Tank 160mlSupplies$94ADD TO CART
PFI-110M - Pigment Ink Tank 160mlSupplies$94ADD TO CART
PFI-110C- Pigment Ink Tank 160mlSupplies$94ADD TO CART
PFI-110BK - Pigment Ink Tank 160mlSupplies$94ADD TO CART
PFI-110MBK - Pigment Ink Tank 160mlSupplies$94ADD TO CART
PFI-310MBK - Pigment Ink Tank 330mlSupplies$172.5ADD TO CART
PFI-310BK - Pigment Ink Tank 330mlSupplies$172.5ADD TO CART
PFI-310C - Pigment Ink Tank 330mlSupplies$172.5ADD TO CART
PFI-310M - Pigment Ink Tank 330mlSupplies$172.5ADD TO CART
PFI-310Y - Pigment Ink Tank 330mlSupplies$172.5ADD TO CART
PFI-710Y- Pigment Ink Tank 700mlSupplies$329.25ADD TO CART
PFI-710M - Pigment Ink Tank 700mlSupplies$329.25ADD TO CART
PFI-710C- Pigment Ink Tank 700mlSupplies$329.25ADD TO CART
PFI-710BK - Pigment Ink Tank 700mlSupplies$329.25ADD TO CART
PFI-710MBK - Pigment Ink Tank 700mlSupplies$296.75ADD TO CART

Additional information

Weight 430 lbs
Dimensions 63 × 41 × 36 in
